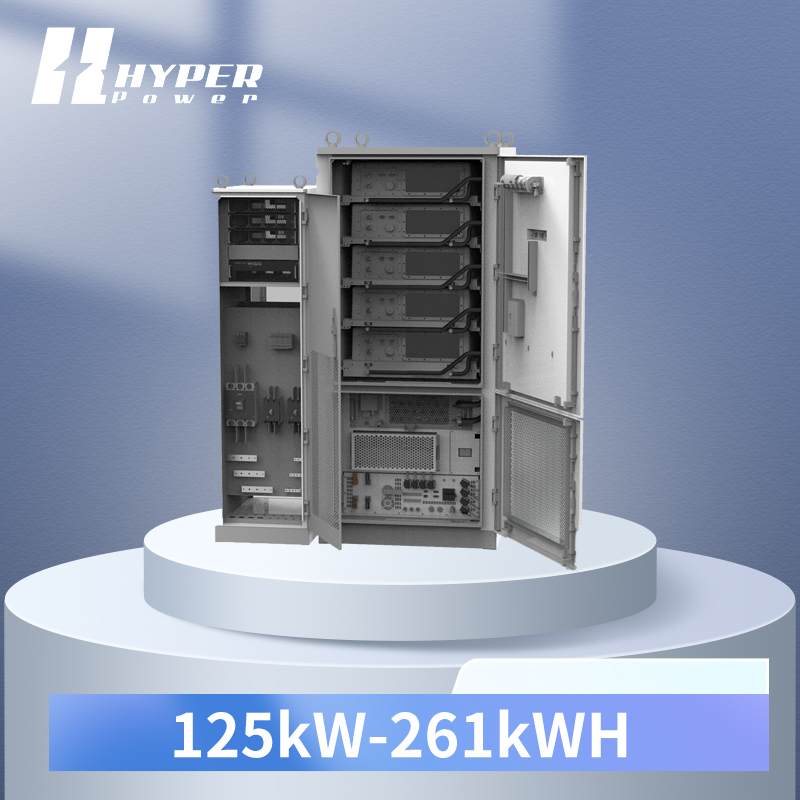

C&I ESS 125kW-261kWh
Large capacity design, a single system can provide up to 60kWh/70kWh/126kWh/251kWh; Adopting durable lithium iron phosphate battery technology; Wide range of working temperature: -20 ℃ -55 ℃ ; Built-in fire protection system, supporting smoke and gas detection functions; Easy installation, floor-standing design, suitable for various scenarios. Provide a 10-year warranty.
|
125kW-261kWh |
|
|
Rated battery capacity |
261kWh |
|
Rated battery voltage |
832V |
|
Cell |
314AH |
|
Cell's connection type |
1P52S*5S |
|
Rated power of PV (MPPT) |
63kW |
|
PV (MPPT) voltage range |
150V~850V |
|
Rated output AC power of inverter |
125kW（400VAC） |
|
Max. charging power of diesel generator |
/ |
|
Rated AC voltage |
400V/230V |
|
Rated AC frequency |
50/60Hz |
|
Operation temperature range |
-25℃~60℃ |
|
EMS communication |
CAN/RS485/MODBUS-TCP/RTU |
|
BMS communication |
CAN/RS485 |
|
Cooling concept |
Liquid cooling |
|
Ingress protection |
IP55 |
|
Dimension |
L1100×W1360×H2460mm |
|
Others |
Wi-Fi support, LCD touch screen |
